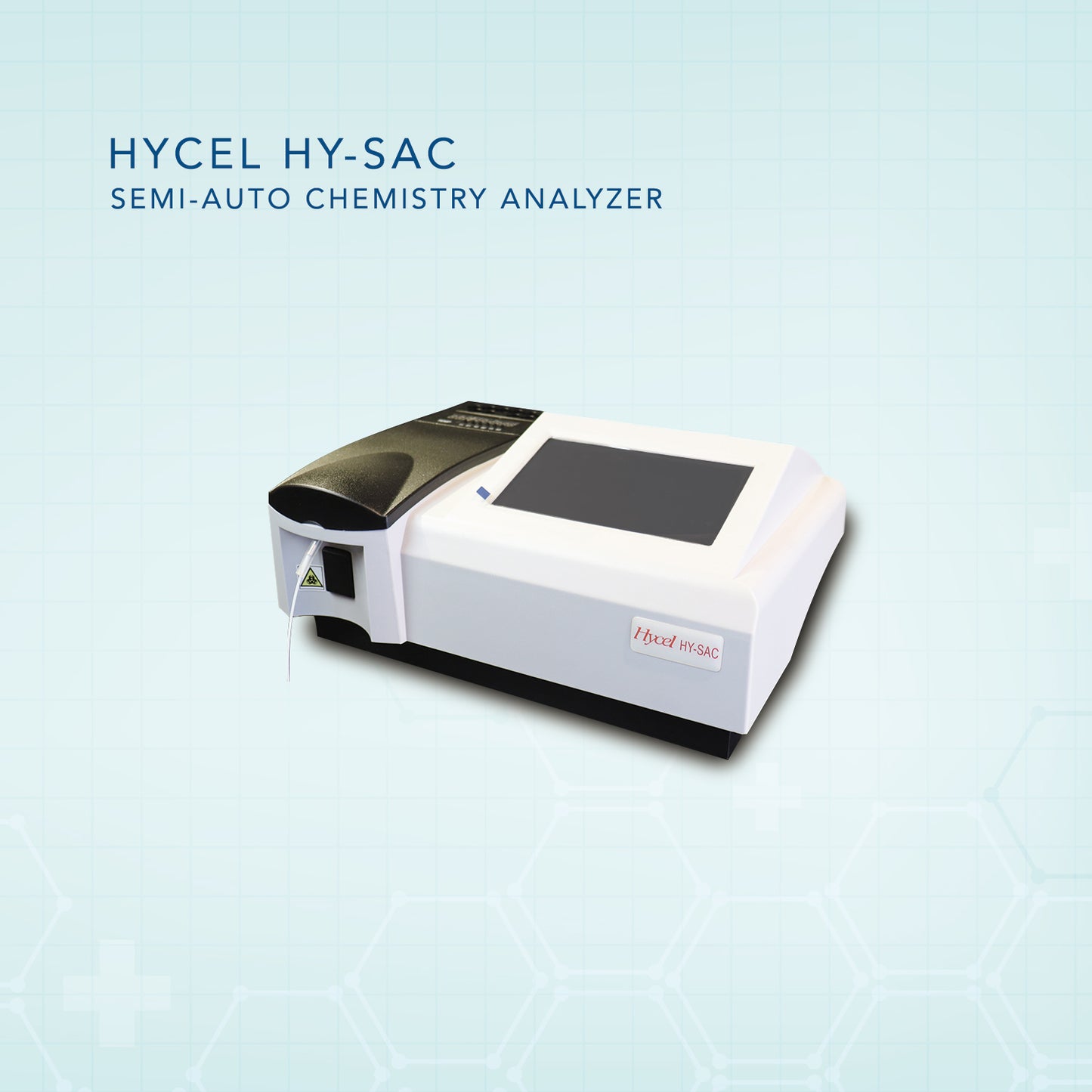

Semi-automatic biochemistry analyzer HY-SAC

It has a Large color LCD with touch panel Built-in incubators and timers Flow cell and Cuvette mode Real-time display of the reaction curve A dependable optical system Auto-sleep mode for light sources Large data storage Built-in printer with LIS connectivity.

Specifications:

1.10 incubators at 37°C, 30°C or 25°C, ± 0.1°C

2. 3 timers with alarm

3. 6V/10W Halogen Lamp with long life span

4. Light path 10 mm

5. 7 wavelengths, 340, 405, 492, 510, 546, 578 and 630 nm

6. 32 μL quartz flow cell

7. Sample volume 500 to 3000 μL

8. 112 programmable assays

9. Data Storage ≥ 10,000 sample results

10. Quality control program X, SD, CV%, L-J graph

11. 7-inch color LCD with touch screen

12. ARM series high speed micro CPU

13. Built-in thermal printer

14. RS-232 interface

15. Working temperature 10-30°C

16. Humidity ≤ 80%

17. Power supply 100~240 VAC, 50-60Hz, 100VA

18. Dimension 340mm*270mm*185mm (L*W*H)

19. Weight 5 kg
