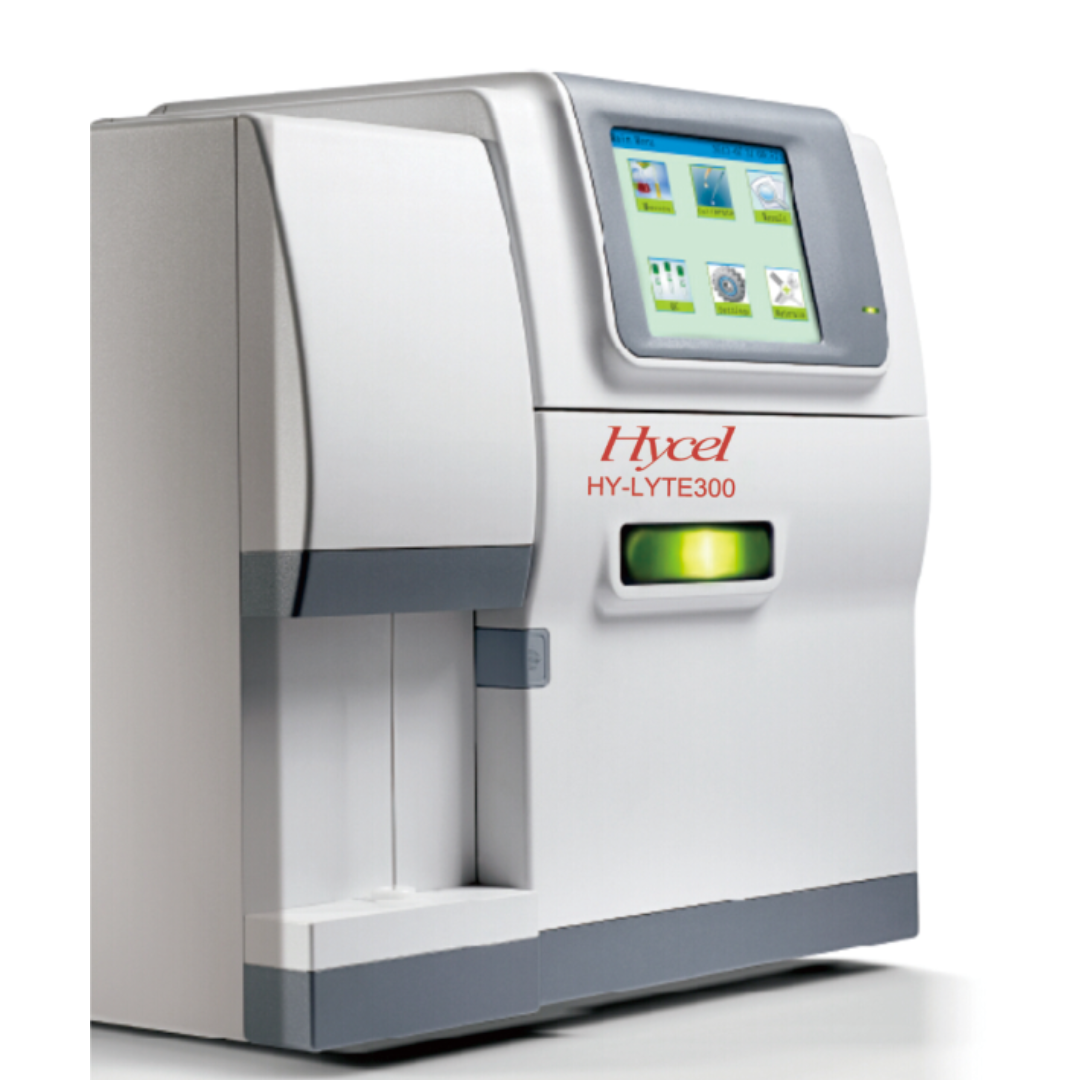

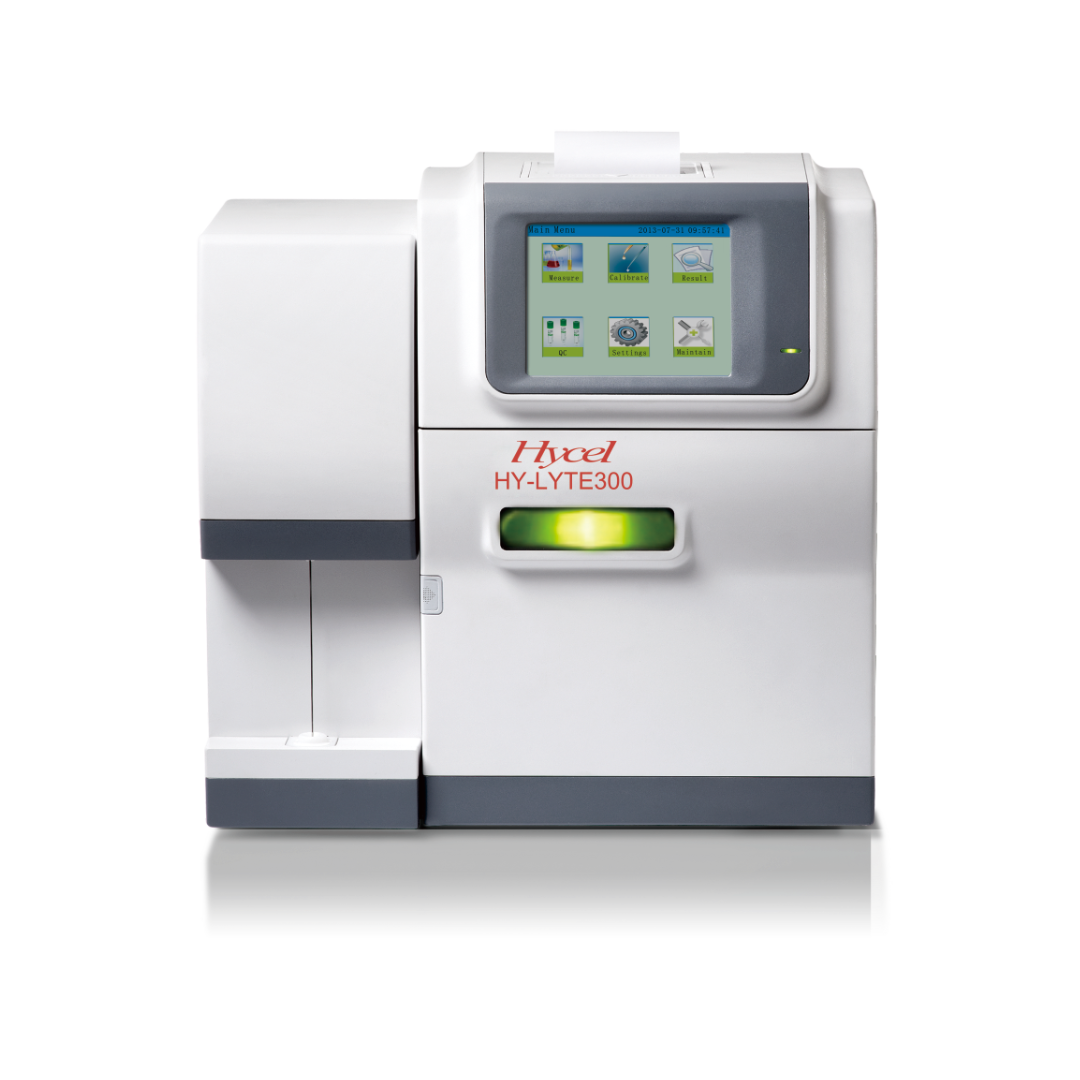

HY-LYTE 300 Electrolyte Analyzer

click here to download brochure ➠📄

General Features

• Throughput: 60 samples/hour
• Principle: Direct Ion Selective Electrode (ISE)
• Touchscreen: 5.6-inch color display
• Automatic: Sampling, washing, and calibration
• Maintenance-free electrodes: 12-month lifespan
• Simple tubing system, easy maintenance
• CE marked

Technical Specifications

• Sample types: Serum, Plasma, Urine, etc.
• Sample volume: 100-200µL
• Calibration: Automatic or on-demand
• Reagent system: Closed, real-time monitoring
• Storage: Up to 50,000 results
• Connectivity: RS-232, LIS support
• Printer: Internal thermal printer
• Working conditions: 15-30°C, 20%-80% humidity
• Power: AC100-240V, 50/60Hz, 80W
• Dimensions & Weight: 430×275×410mm, 8kg

Performance & Parameters

• Measures: Na+, K+, Cl-, iCa2+, TCa, pH, Li+, TCO2, AG, KT
• Linearity range: Na+ (0.3-200 mmol/L), K+ (0.1-6.0 mmol/L), pH (3.0-11.0), etc.
• CV (precision): ≤1.5% for most parameters

Reagents

• Standard solutions, cleaning & activation solutions, deprotein solutions
