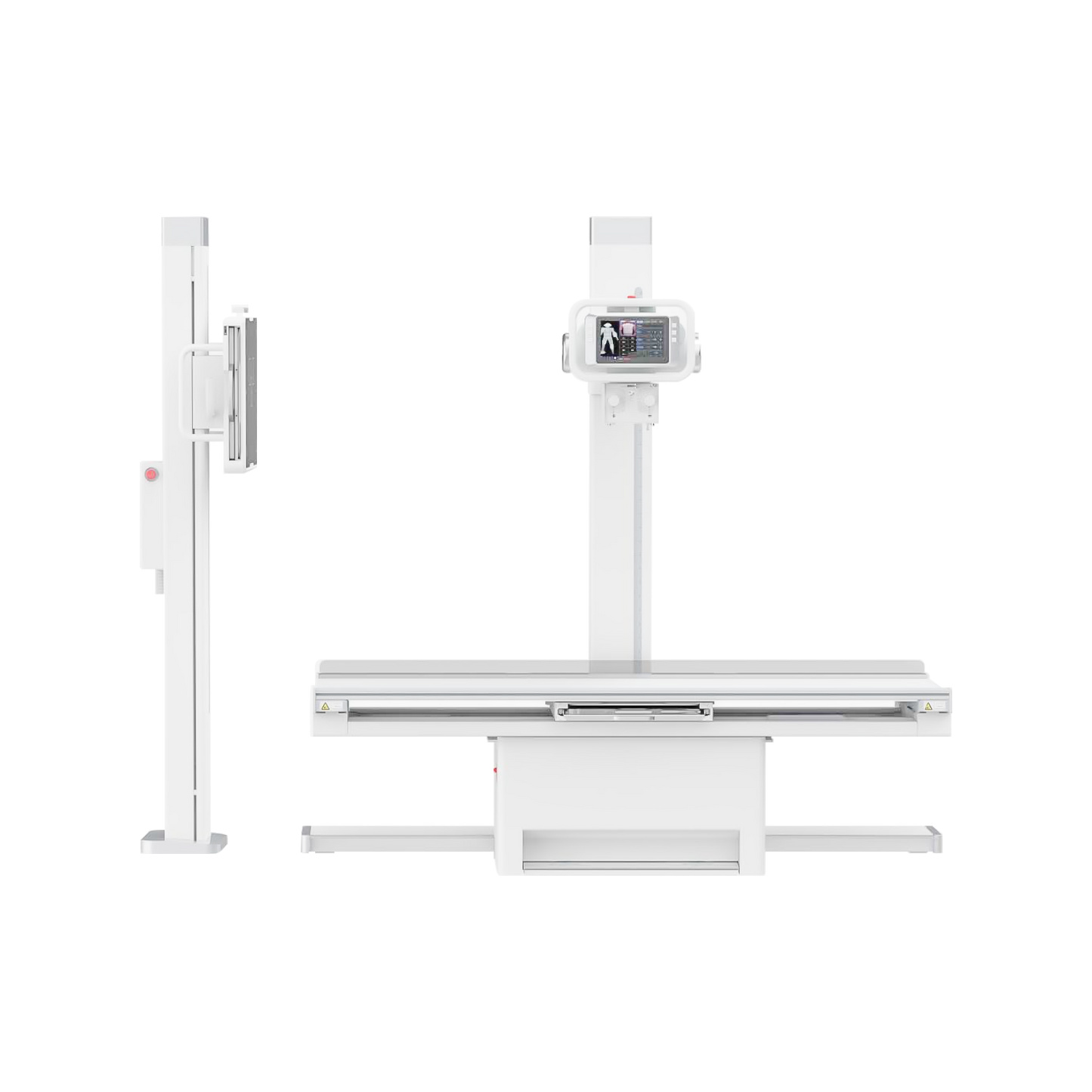

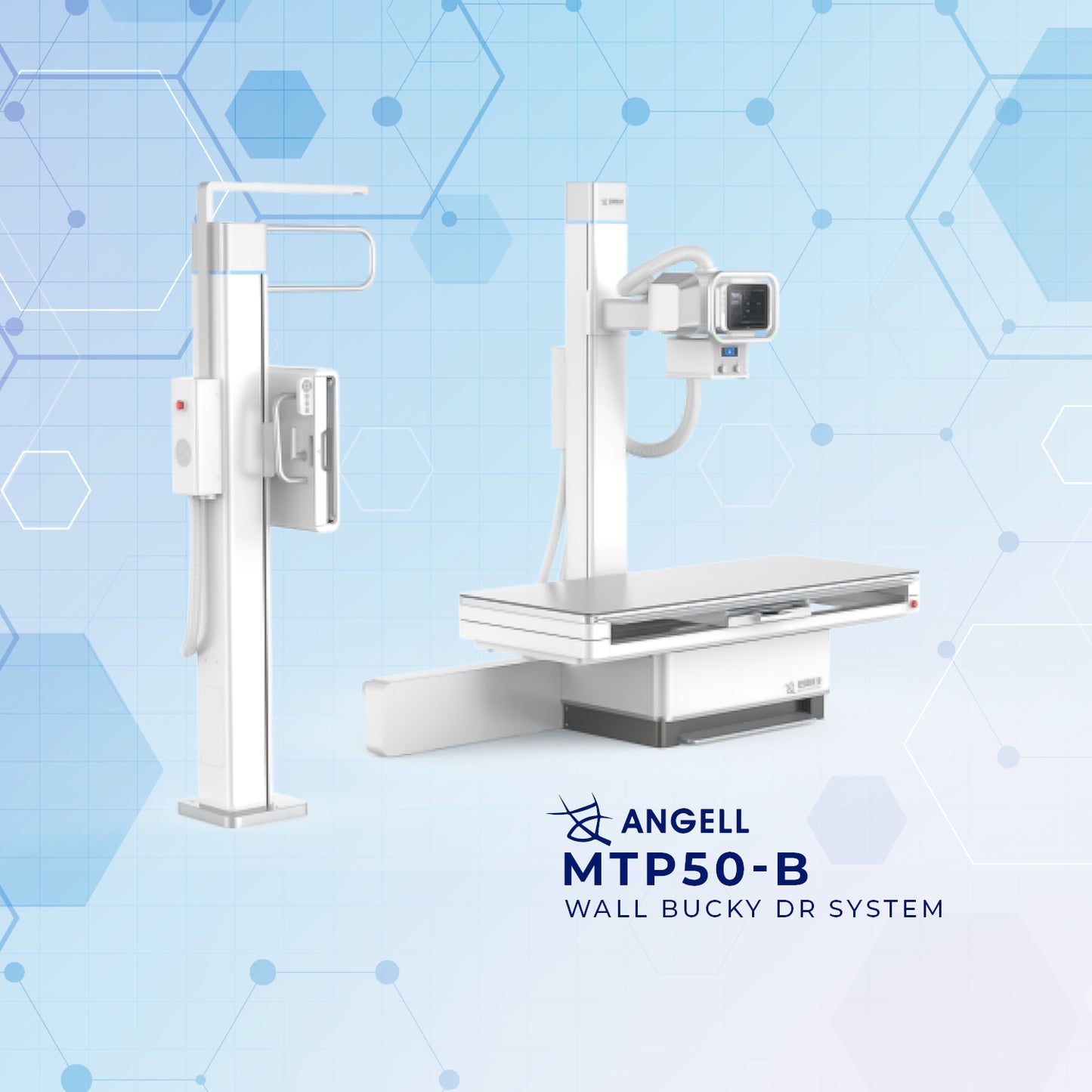

Digital Medical X-Ray Radiography System

Dynamic Flat Panel Detector (Standard)

Specifications
• Detector Technology: a-Si Flat Panel Detector
• Scintillator material: CsI
• Pixel size: 139μm
• Images size: 430mm x 430mm
• Static Pixel Matrix: 3072 x 3072pixels
• Spatial Resolution: 3.6lp/mm
• Output Grayscale: 16bit
• Acquisition Time: ≤2s
• Image processing Time ≤3s



Dynamic Flat Panel Detector (Optional)

Specifications
• Detector Technology: a-Si Flat Panel Detector
• Scintillator material: CsI
• Pixel size: 139μm
• Images size: 350mm x 430mm
• Static Pixel Matrix: 2560 x 3072pixels
• Spatial Resolution: 3.6lp/mm
• Output Grayscale: 16bit
• Acquisition Time: ≤2s
• Image processing Time ≤3s

High Frequency Generator

Specifications
• Output power: 50kW
• Frequency: 300KHZ
• kV range: 40~150kV, 1kV step
• mA range: 10~630mA
• mAs range: 0.4 mAs~1000mAs
• Exposure time: 0.001~10s
• Input power: 380V, three phases



X-ray tube

Specifications
• Target Material: Lawrencium-tungsten Molybdenum
• Target angle:12°
• Focal Spot Sizes:0.6 / 1.2 mm
• Max Output Voltage:150KV
• Power: 31KW/75KW
• Anode heat storage:210kJ/300KHU
• Max. heat content: 900 kJ (1250 KHU)
• Max. anode heat dissipation rate: 750 W (1060 HU/s)
• Anode rotation: Max. 8400 rpm/min

Floor-mounted System

Specifications
• Bed Size: 2200 X 800 X 640mm (LXWXH)
• Bed Surface Longitudinal Movement Distance: ±550mm
• Bed Surface Lateral Movement Distance: ±130mm
• Column Rotation Range: ±180°
• Tube Rotation: ±180°
• Vertical Movement Range of The Column Along The Bed: 1870mm
• X-ray Tube Up and Down Range Along The Column: 350-1850mm
• foot padel control, electromagnetic lock

Collimator

Specifications
• Max Work Dose: 150kVp
• Power: 150W (24VAC)
• Auto-close Time: 30s
• Brightness: ≥160lux (100cm)

Grid

Specifications
• Grid Density: 40lp/cm
• Ratio: 10:1
(optional to have other grid as requested)

DX Ray Diagnostic Workstation

Specifications
• CPU: Dual-Core ≥3.0
• RAM: 4G
• Hard Disk: 500G (optional to have other PC configurations)
• Display: 1920 x 1200 Display, 24 inches
• Imaging Part Indicator, Tissue Equalization, Filter Correction, Grayscale
• Transform, Window/Level Adjustment, Gamma Correction, ROI Equalization
• Black/White Reversion, Image Segmentation, Mark, Enhancement, Smoothing
• Sharpening, Compression, Magnification, Graphic Text Report, Printing
• Film Printing, Supports Standard DICOM 3.0 Laser Film Printer
• DICOM 3.0 Format, Compatible to Transfer to PACS
