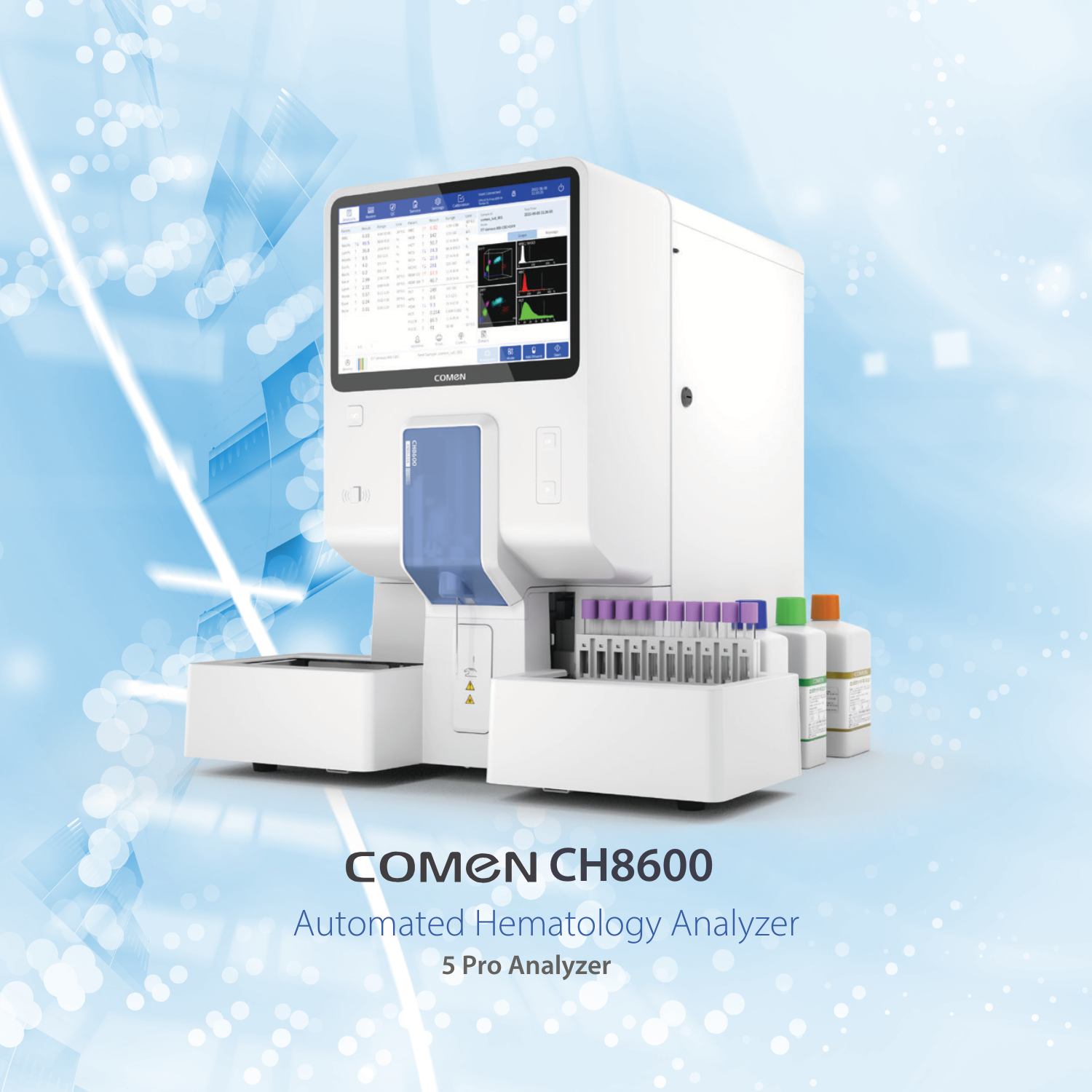

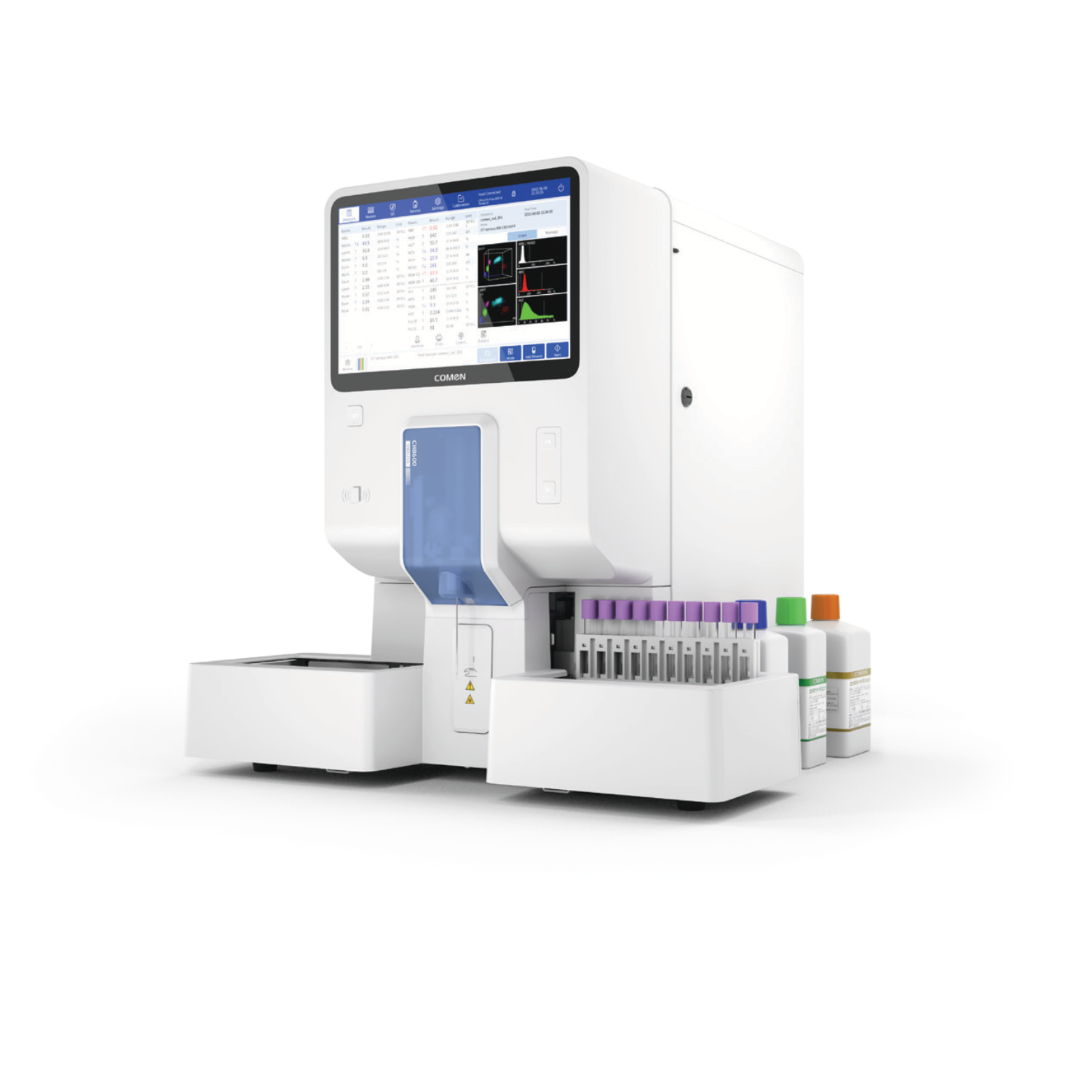

CH8600 - 5-Pro Hematology Analyzer

High-Throughput 5-Part Hematology Analyzer

click here to download brochure ➠📄

  • Principles: Laser scatter for WBC differentiation, electrical impedance for WBC, RBC, and PLT counting, colorimetry for HGB.
  • Parameters: 25 reportable parameters, including 6 research parameters.
  • Throughput: Up to 90 tests per hour (CBC mode), 80 tests per hour (CBC+DIFF mode).
  • Sample Volume: CBC mode (13μL), CBC+DIFF mode (22μL), Pre-diluted mode (20μL).
  • Display: 12-inch LCD touch screen.
  • Data Storage: Up to 200,000 sample records.
  • Connectivity: 6 USB ports, 1 LAN port, bidirectional LIS support.
  • Additional Features:

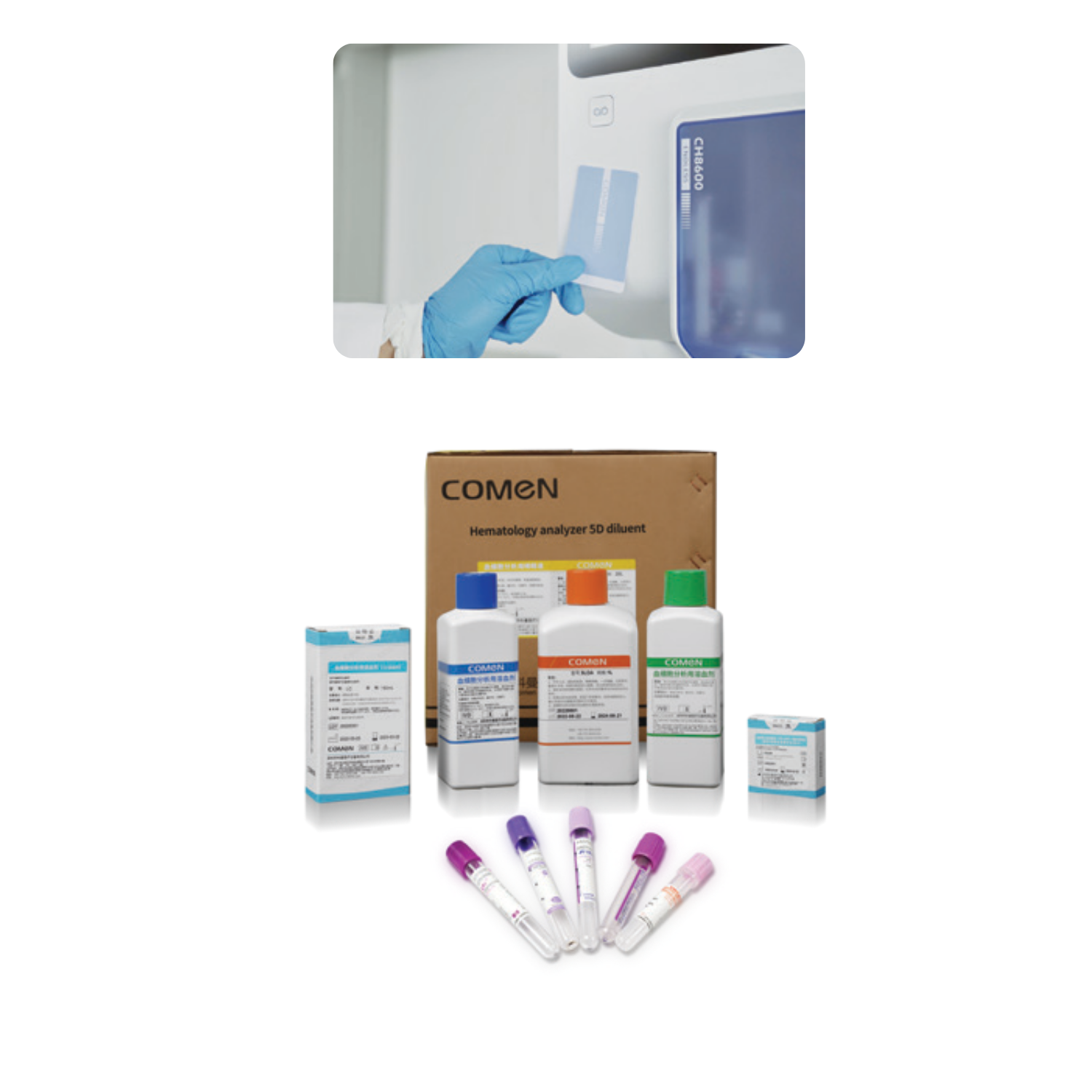

    • Automated reagent management with RF card.

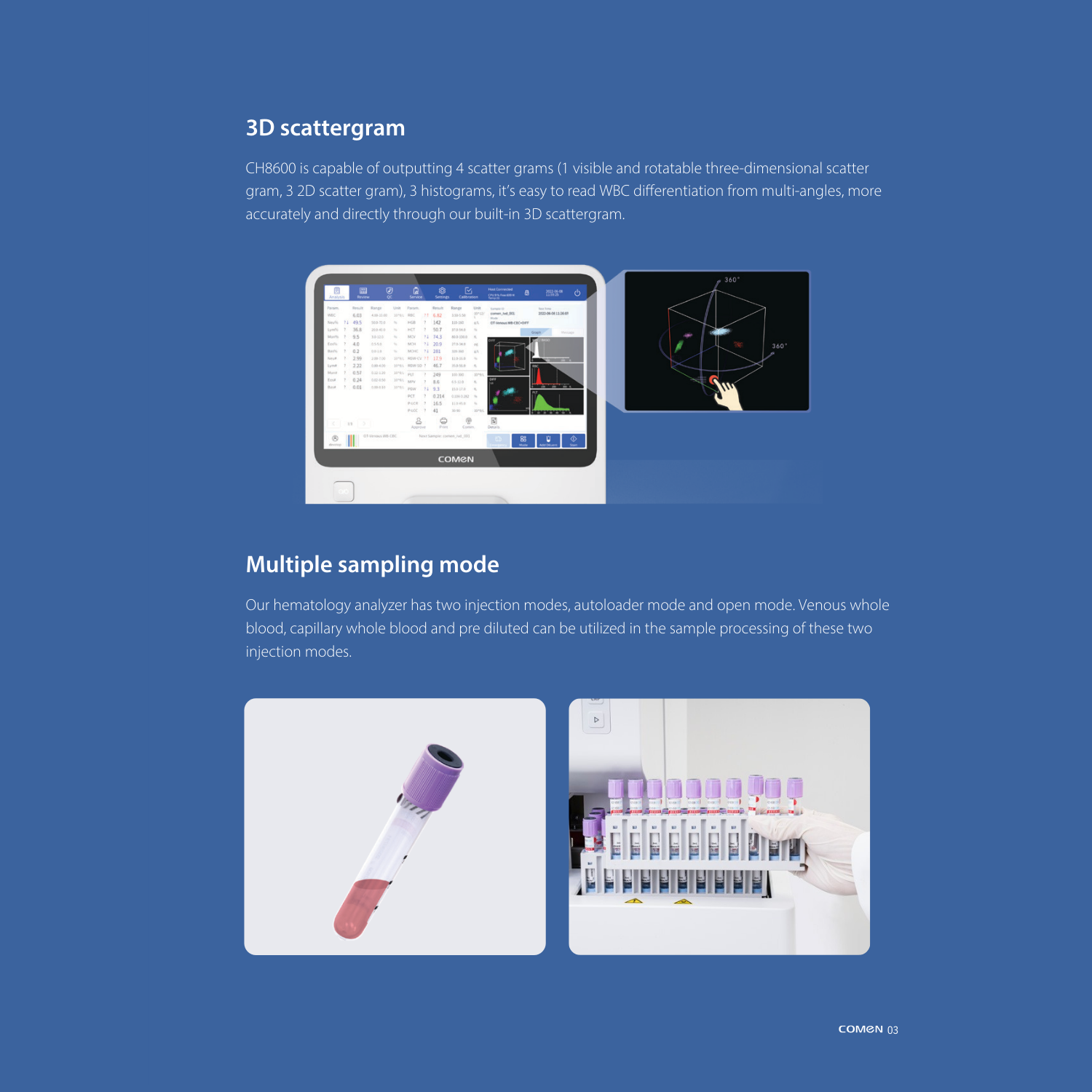

    • 3D scattergrams and multiple sampling modes.

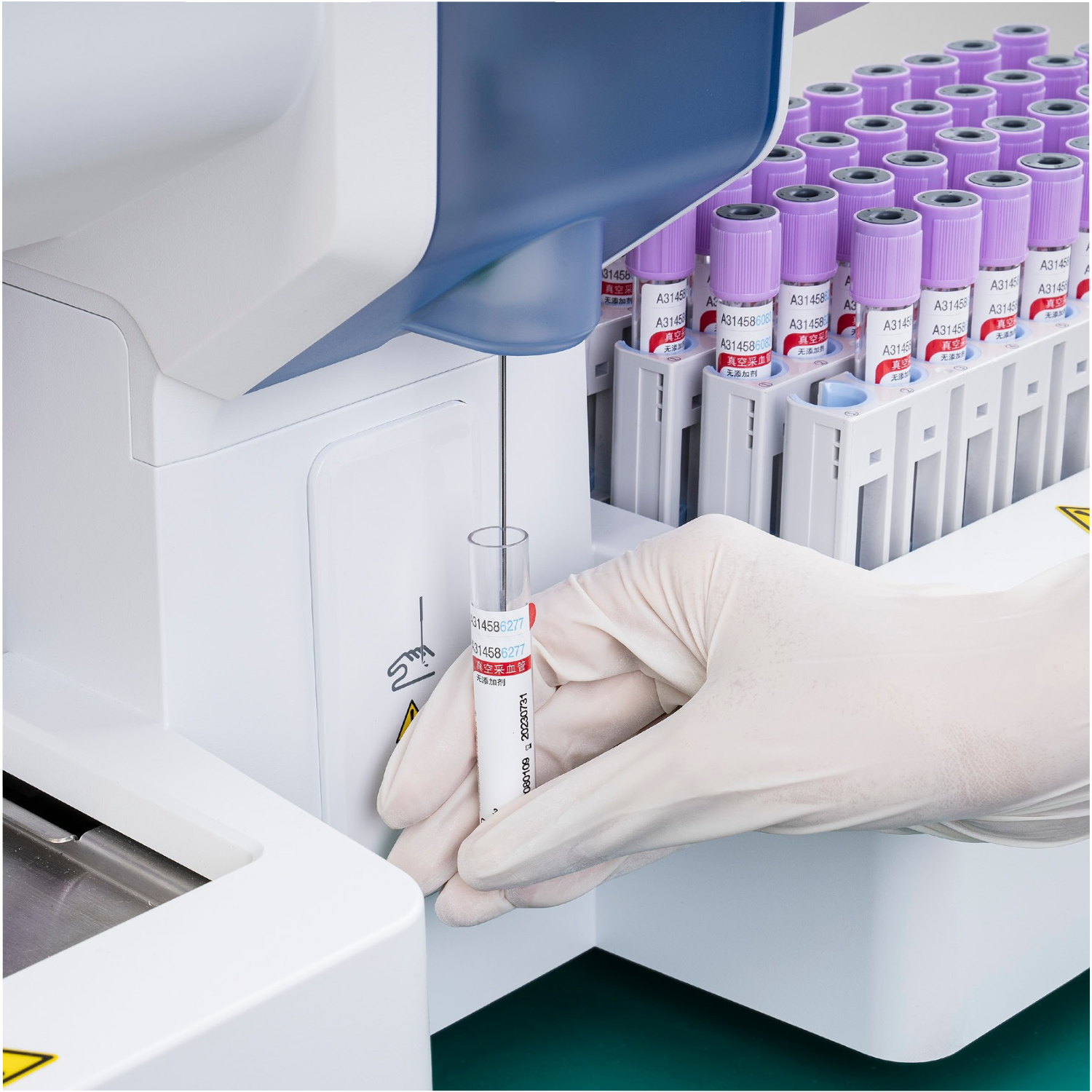

    • Autoloader and open sampling options.
    • Space-saving design, ideal for small labs and clinics.
