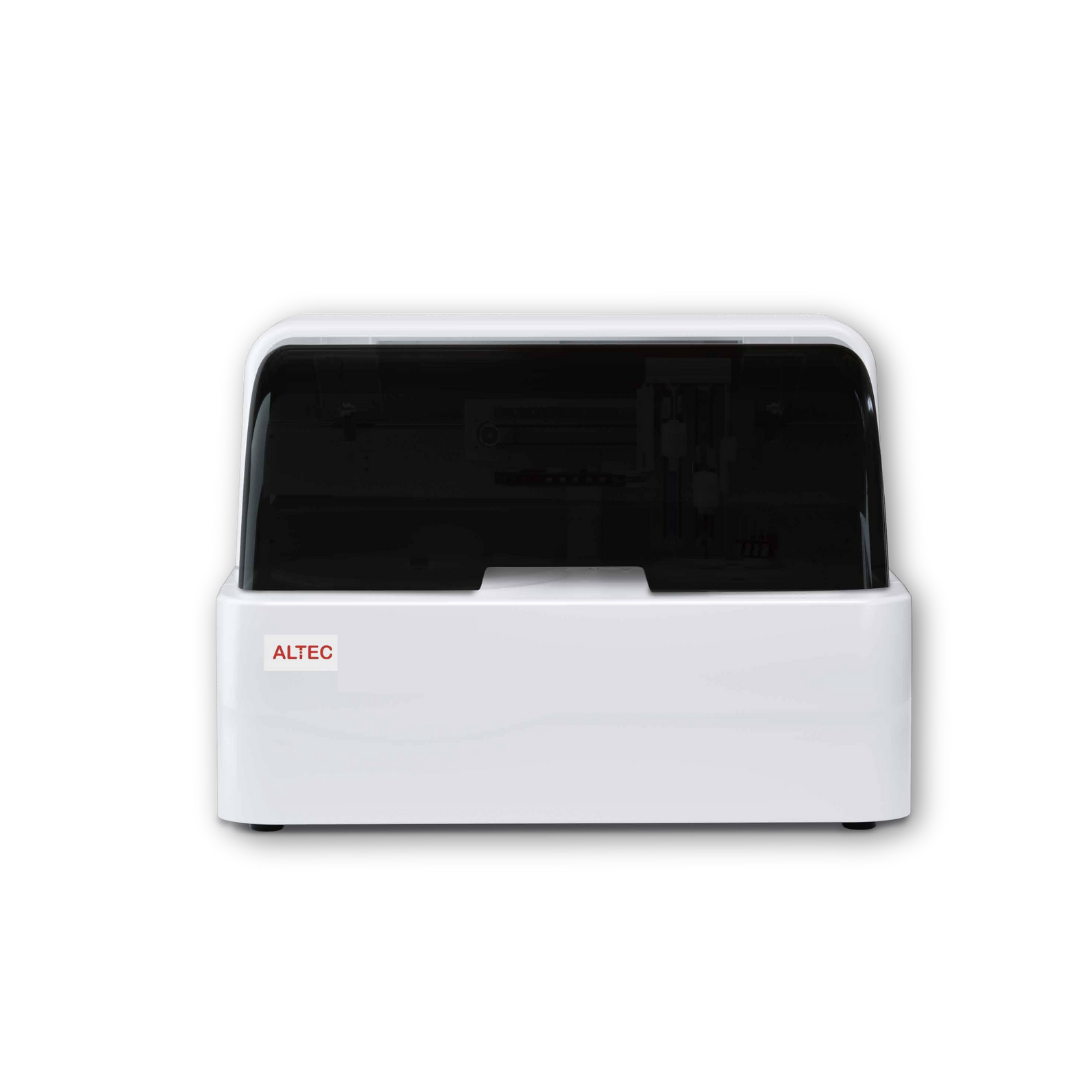

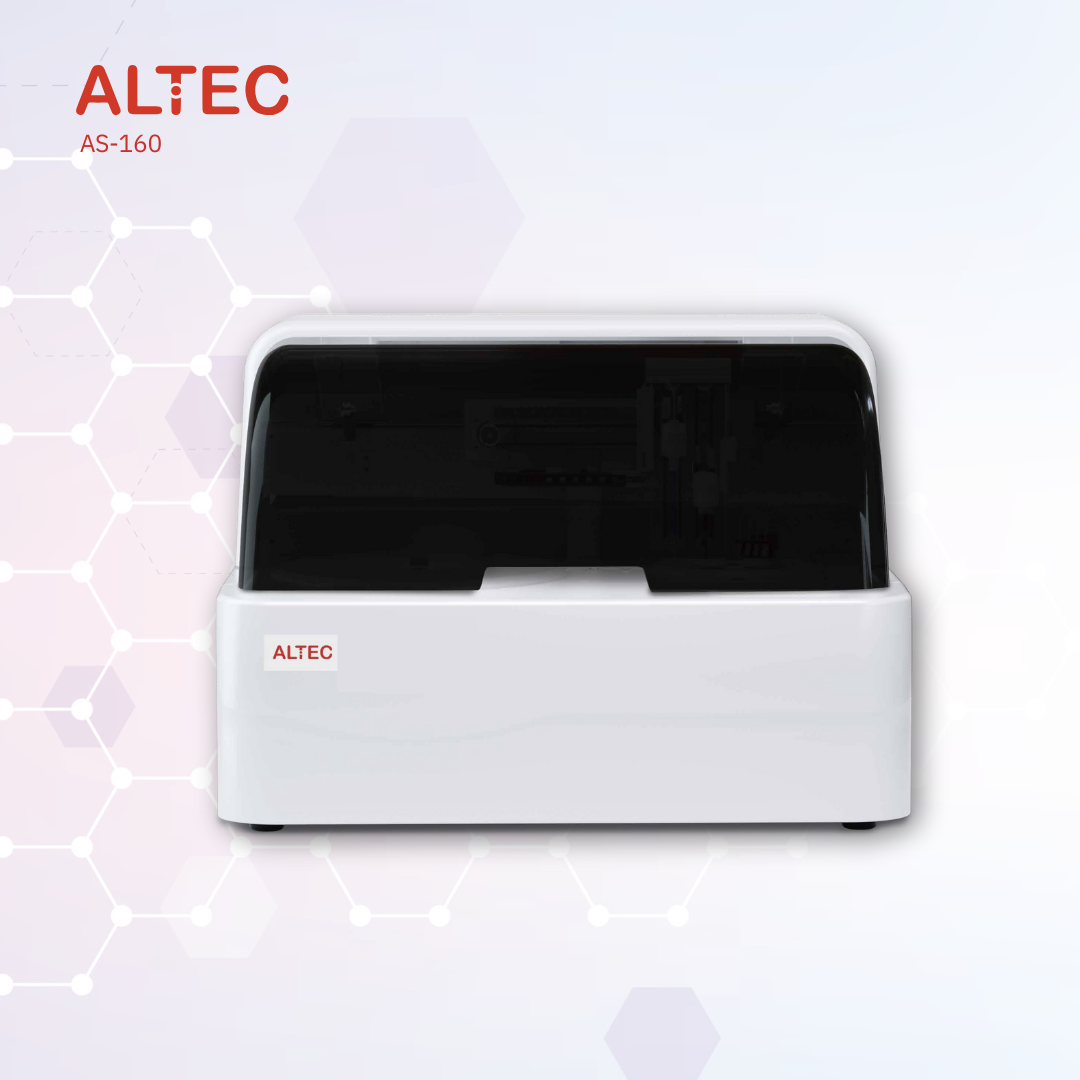

AS-160 Auto Chemistry Analyzer

click here to download brochure ➠📄

• Testing Capacity: 200 tests per hour with double reagent
• Reagent & Sample Handling:
• 80 reagent positions (40 for R1, 40 for R2)
• 40 sample positions (supports micro cups & test tubes)

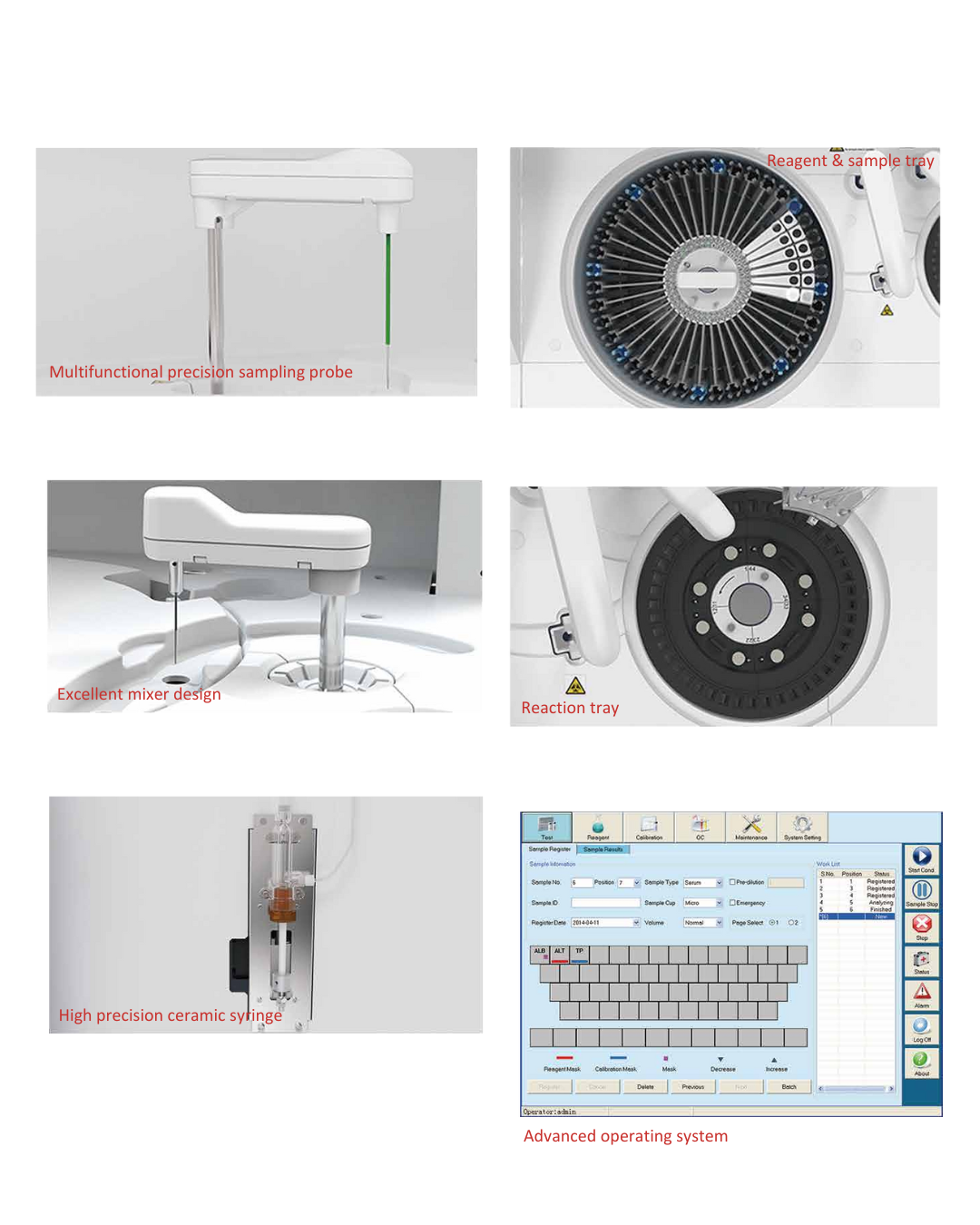

• Multifunctional precision sampling probe with sensitive liquid sensor
• Automatic sample dilution (increase, decrease, normal)
• Bar code reader (optional)
• Optical & Reaction System:
• Fully enclosed optical system with multi-wavelength detection
• 44 reaction cuvettes made of amorphous optical plastics (high transmittance)
• Stable reaction temperature (37±0.1°C)
• Permanent ceramic piston & high-precision ceramic syringe
• Teflon-coated mixer (no water dropping, reduced carry-over)
• Washing & Maintenance:
• Automatic liquid level sensing & anti-collision protection
• 3-stage, 2-times automatic washing system (4-stage with alkaline cleaning)
• Non-stop cooling system (Peltier pad inside)
• Maintenance-free semiconductor solid-state refrigeration
• Software & Calibration:
• User-friendly interface with external/internal probe washing
• Automatic reaction result checking & warnings
• Multi-point calibration (up to 8 points), linear & non-linear calibration
• Quality control supports Westgard rules, L-T plot, cumulative data
